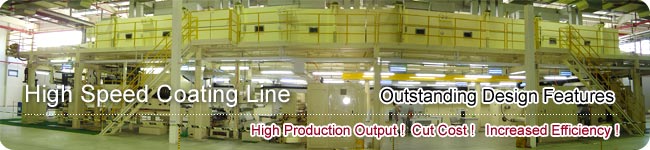

  / Paper Converting / High Speed Coating Line

High Speed Coating Line Silicone Coating Line Lable Coating Line Hot Melt Coating Line

High Production Output¡ILine Speed Over 350 M/min.
Cut Cost¡IUnit Coating Weight 0.2gsm (5 roll)
Increased Efficiency¡IWeb Winding Diameter up to Ø1,600 mm.

> Special Features¡G

  • Designed for high speed coating on release paper or film.
  • Custom processing combinations to meet customer's specific requirements.
  • Floating oven with powered elevation.
  • A high speed coating line designed for high efficiency production while enormously lowering production costs.
  • The coating mechanism is a modular structure and is explosion-proof.
> Human - Machine Interfacing Control System¡G

  • Comprehensive processing parameter setting.
  • Furnished with operation and maintenance manuals.
  • Running status display.
  • Automatic alarm.
  • Malfunction condition display.
> Offset (Three Roll) Gravure Coater¡G

  • Applicable for low viscosity glue or water-based glue.
  • Coating range: 0.6~6gsmƒÜ
  • Superior coating accuracy.ƒÜ
  • Transfer roll is available to equip with a sleeve device. Also, it is available to change coating width to meet specific production requirements.
  • Choice of enclosed or open type doctor blade.
  • Gravure roll features sunday-running function when the machine stops.
> Floating Oven¡G

  • The oven inside is constructed of stainless steel plate, which is suitable for operation in clean rooms.
  • The upper and lower air chambers have cleaning ports, allowing operators access for cleaning.
  • The upper and lower nozzles are easy to be dismantled for cleaning convenience.
  • Upper oven elevation is powered. 450 mm maximum opening provides convenient web threading and cleaning.
  • Distance between upper and lower nozzles can be adjusted as desired to meet processing requirements.
  • Air flow for upper and lower air blow damper can be individually adjusted to adjust the web floating condition.
  • Upper and lower nozzles are equipped with differential pressure gauges, allowing checking of nozzle air pressure at any time.
> Unwinder¡þWinder

  • Max. unwinding diameter Ø1,600 mm on single shaft.
  • Dual-direction winding.
  • Equipped with shaftless chuck.
  • Expandable mechanical chuck accommodates 3" and 6" paper core or 6" steel core.
  • Choice of touch roller or near roller winding modes.
  • Equipped with splicer for full speed automatic splicing.
  • Available to equip with hydraulic lifter unit (Optional ).

Automatic splicer unit
  • Featuring full speed automatic splicing and reversible running.

Table lifter (Optional)
  • The table lift-up is driven by a hydraulic system providing added operational convenic.

Flexo printing station (Optional)

  • Suitable for printing logos or any figutes on the back side of web.
  • Available to change printing plate.
  • Gravure roll featuress sunday-running function when the machine stope.
