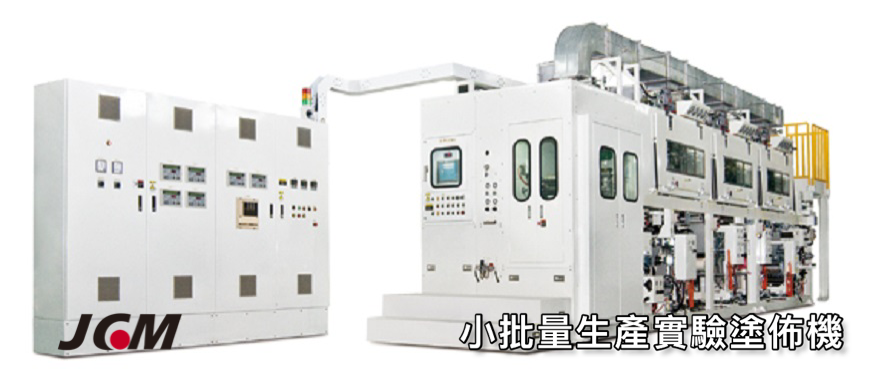

High Precision Web Surface Coating Inspect machine

> Special Features¡G

  1. A versatile coating line combined with various processing.
  2. The coating mechanism is modular structure.
  3. The entire machine is designed to meet class 1000 clean room standards.
  4. Specially designed floating oven.
  5. Explosion-proof structure.
> Suitable for producing various, High precision flexible web products¡G

¡EWafer UV curable dicing tape ¡ELead frame tape ¡EConductive tape
¡EMedical tape ¡EPolarizer ¡EDiffusion Film
¡EDry Film ¡EFlexible printed circuit board ¡EMulti-layer ceramic capacitor
¡EInk jet media
> Human-Machine interface control system¡G

  • Comprehensive processing parameters setting.
  • Furnished with operation and maintenance manuals.
  • Running status display.
  • Automatic alarm.
  • Malfunction condition display.
> Unwinding / Winding Mechanism¡G

  • Automatic tension control.
  • Online with auto splicer. Splicing at synchronized line speed.
> Coating Mecanism¡G
  The coating mechanism is a modular structure, providing various coating methods to meet specific production requirements.
  • LIP Coating / LIP Reverse Coating¡G
    1. Reduce bubbling during high speed urnning.
    2. High precision coating with maximum uniformity.
    3. Applicable for wide range of viscosities.
  • COMMA Coating / COMMA Reverse Coating¡G
    1. High precision coating for superior surface effect.
    2. Not recommended for low viscosity glue.
    3. Highly economical efficiency.
> Gravure Coater¡G

  • Accommodates low viscosity glue and water-based glue.
  • Precise coating accuracy.
  • Coating weight: 0.6~20£g
> Floatation Oven¡G

  • Double-surface drying for greatly increading heat transfer efficiency.
  • Minimizes pin-hole problems. Avoids impractical drying.
  • The film is supported by air without surface scratching problems.
  • Especially ideal for films with low tension under 6£gm.
 ÄƯB¦¡¯M½c
> Lamination Mechanism¡G

  • Choices of dry or wet lamination to meet your production requirements.
  • Single or double-sided lamination.
